LFortran: IMPLEMENTING A CUSTOM WASM BACKEND

GSoC'22 Report

---

• Organization: Fortran-Lang
• Mentors: Ondrej Certik, Gagandeep Singh, Rohit Goswami
• Contributor: Ubaid Shaikh

---

This report summarizes the work done as part of my GSoC 2022 project titled LFortran: IMPLEMENTING A CUSTOM WASM BACKEND at LFortran/Fortran-Lang.

Project Outline:

The objective in this project is to implement a WebAssembly (WASM) Backend for the LFortran Compiler. The goal is also to compile LFortran to WASM and deploy on a static webpage. Thus, this project aims to add to fortran the capability of executing on the World Wide Web, the only truly universal platform.

What was done:

Our project was mostly completed in four phases as follows:

• Pre-GSoC Phase: During this phase we iterated over the design of the wasm backend and implemented it. The weekly blogs during this phase are as follows:

  • Pre-GSoC Blog 1: Contributing to Integration Tests

  • Pre-GSoC Blog 2: The Designing of the ASR->WASM Backend

• GSoC Phase-1: During this phase we designed the wat backend and added initial support for compiling lfortran to wasm. We also deployed the built lfortran wasm binary to a live site. The weekly blogs during this phase are as follows:

  • GSoC Blog 1: The Designing of the WASM->WAT Backend

  • GSoC Blog 2: Enabling LLVM Based WASM Backend and Build LFortran to WASM

  • GSoC Blog 3: Extending WASM and WAT Backends

  • GSoC Blog 4: Adding Print support and Deploying on Live Site

• GSoC Phase-2: Now that we had the wasm backend, the wat backend and compilation of lfortran to wasm. The next part of the project was to extend the wasm and wat backends to support more features of fortran/ASR. This extension of both the backends was accomplished in this phase. The weekly blogs during this phase are as follows:

  • GSoC Blog 5: NodeJS Testing Infrastructure and Supporting Basic If-Else

  • GSoC Blog 6: Type Conversions and Supporting More Operators

  • GSoC Blog 7: Supporting Loops and Other Improvements

  • GSoC Blog 8: Supporting Subroutines and Improving/Refactoring WASM Backend

  • GSoC Blog 9: Initial Support for Arrays

  • GSoC Blog 10: Supporting Multi-Dimensional Arrays and WASM Testing at CI

  • GSoC Blog 11: Various Fixes and Improvements in the WASM Backend

• GSoC Ending Phase: This comprises the final week(s) of GSoC where we focused on CI (Continuous Integration) support for wasm building, its storage and some final features and fixes. The blog during this phase is as follows:

  • GSoC Blog 12: Supporting Several Features and Final Fixes

Merge/Pull Requests

The merge/pull requests submitted during the period of GSoC from (approx)23-05-2022 to 23-08-2022 are as follows:

At Gitlab/lfortran:

• Wasm backend #1713

• Add wasm_to_wat backend #1757

• Enable LLVM based wasm backend #1769

• Refactor wasm backend #1787

• WASM: Support i64 Constants #1789

• WASM: Support Unary Minus for i32 and i64 #1791

• WASM: Add support for f32 and f64 #1792

• WASM: Code Refactor and Minor Improvements #1793

• WASM: Add print support #1794

• WASM: parse empty source code #1795

• WASM: Compile/Build LFortran to WASM #1796

• WASM: Add support for stop and error stop #1797

• WASM: NodeJS Testing Infrastructure #1808

• WASM: Add support for basic If-Else #1809

• WASM: Minor Improvements #1810

• WASM: Suggested Minor Refactor #1811

• WASM: Add Cast Support #1822

• WASM: Support Relational Operators #1823

• WASM: Support Logical Operators #1824

• WASM: Add support for Loop #1830

• WASM: Various Improvements #1834

At GitHub/lfortran:

• WASM: Improvements and Refactoring #13

• WASM: Add support for Subroutines #21

• Refactor: WASM: Extract common return #27

• WASM: Initial support for Arrays #49

• WAT: Arrays Fix #55

• WASM: Support Real and Logical types with Arrays #66

• WASM: Supporting Multi-Dimensional Arrays #70

• CI: Support integration tests testing for WASM #71

• Pass: Passing Array descriptor by value #77

• WASM: Supporting array passing with explicit shapes #99

• WASM: Supporting specifying max no of memory pages #103

• WASM: Using pass_array_by_data #109()

• WASM: Fix false integration tests passing #114

• WASM: Implement set_exit_code #123()

• Support kind for different param types #124

• WASM: Declaring a fixed enough memory #126

• WASM: Use compile-time function value #127

• WASM: Support bind C for array passing to JavaScript #153

• CI: Building LFortran to WASM #157

• WASM: Support WAT for bind(c) functions #588

• CI: Fix CI and upload to wasm_builds #619

• CI: Fix upload to wasm_builds #622

• WAT: verify preamble #631

• CI: Fix: Overwrite the latest_commit file #632

• WAT: wasm_to_wat error handling #634

• WASM: Support defining functions in any order #635

• WASM: Enable supporting integration_tests #636

• WASM, WAT: Improve code formatting #637

• WASM: Support basic string variables #640

• WASM: Add support for cpu_time #641

• WASM: Remove function with no body warning #642

• WASM: Support runtime library #643

• WASM: Fix import functions bug #657

At GitHub/lcompilers_frontend:

• CI: Add CI for auto deploying site #1

• Minor improvements #18

• Rename master branch to main #19

• Download files from wasm builds #30

• CI: trigger on post request #35

• Support cpu_time #36

• Support runtime library #37

• Increment lfortran latest_commit #39

• Update latest_commit #40

Outcome:

The outcomes of the project are the following:

• A WASM Backend for LFortran

• A WAT Backend for LFortran

• LFortran (along with its runtime library) compiles to WASM using emscripten

• CI (Continuous Integration) support for building to wasm and storing built lfortran wasm at lfortran/wasm_builds

• A frontend for the static webpage (at dev.lfortran.org) where we deploy our lfortran wasm binary and can see it live in action

• CI (Continuous Integration) support for building the frontend site

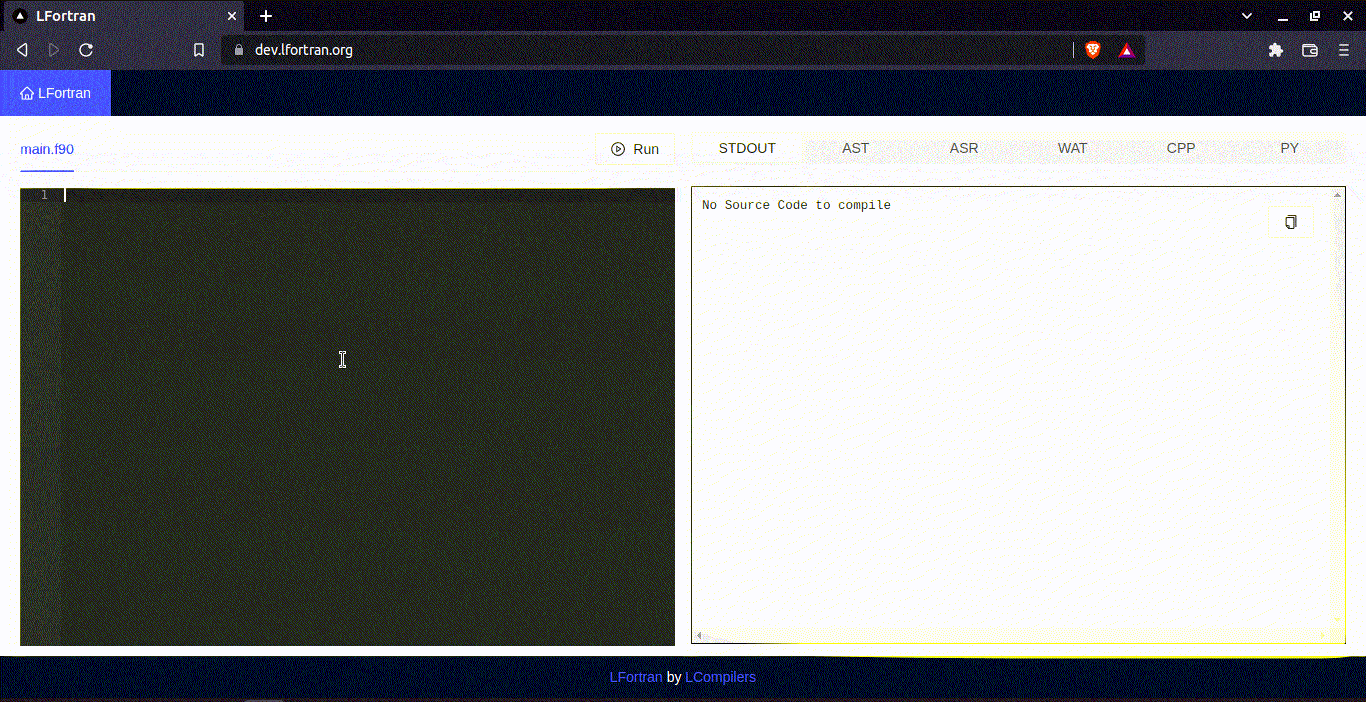

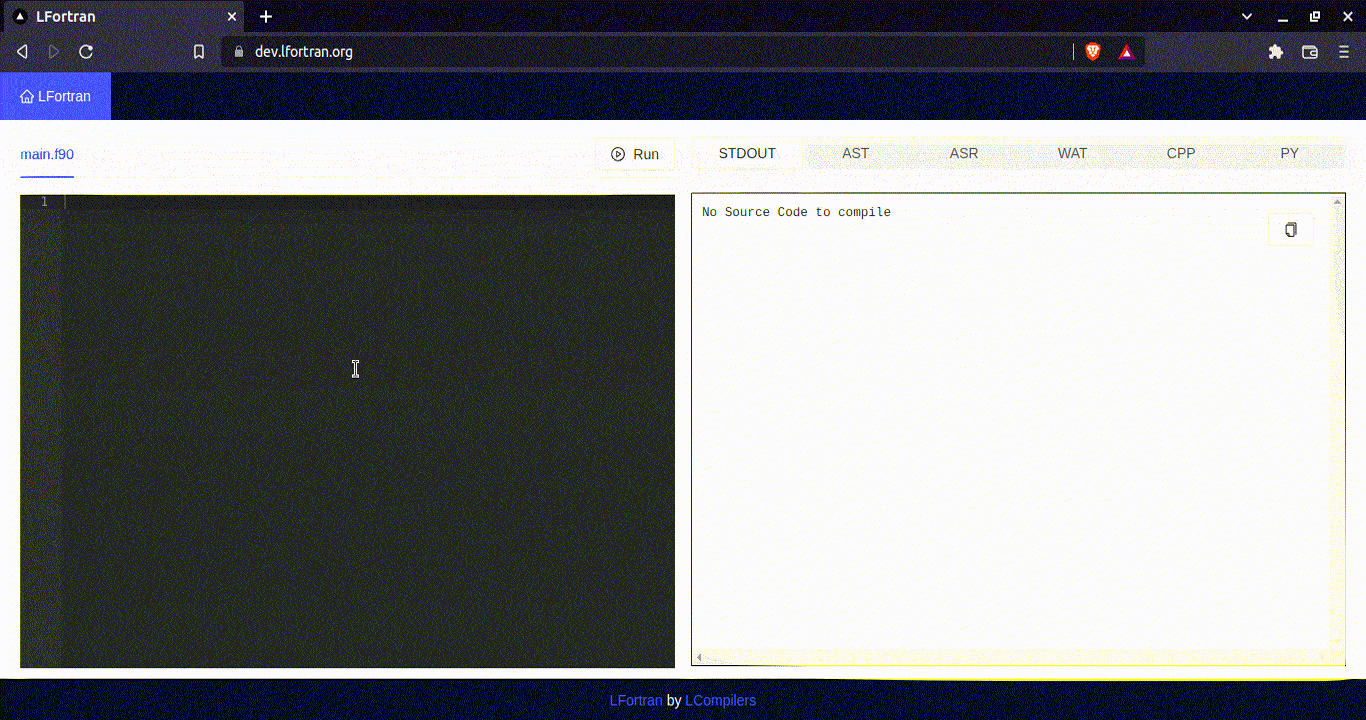

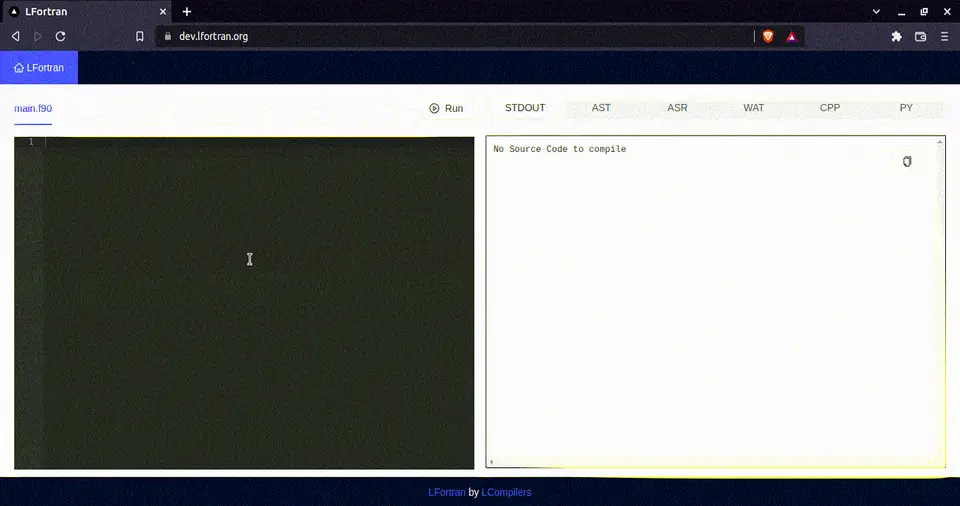

Live Demo:

Future Work:

There are tremendous possiblities of extending this work. Some of the future work includes the following:

• Extending the current wasm and wat backends: Adding support for dynamic memory allocation and thus array allocations during runtime. Supporting structs and derived types in the wasm and wat backends.

• More Robutness: Finding and fixing bugs in the current wasm and wat backends. Some of the issues are noted at WASM: Future Prospects #597 and fixing them would (hopefully) make our wasm architecture more robust.

• Supporting WASI: One of the directions could be to add support of WASI (WebAssembly System Interface) to the LFortran WASM Backend.

• Data Visualization: We could also try to explore data visualization using fortran.

My Learnings

It has been an incredible journey, full of fun and learning for me.

Following is a list of my learnings (including but not limited to):

• GIT: I got to learn/improve version control (git) skills. I learnt rebasing, resetting (hard, soft) and cherry-picking commits. Previously, I used to be afraid of merge conflicts and now, I enjoy resolving them.

• WASM: This project provided me with the wonderful opportunity to understand how binaries are created and processed. I got to learn about the wasm structure and its textual format (wat).

• NextJS: I got to learn about NextJS. We used NextJS while building the lcompilers_frontend.

• CI: I also got the opportunity to work towards the CI (Continuous Integration) part during the course of the project.

• CMake: I also got the opportunity to get my hands onto CMake during the course of the project.

• Fortran: I got to learn about fortran. I learned about intrinsic functions, runtime library, etc.

• Compilers: I got the opportunity to learn how a compiler works, specifically the backend/codegen part.

• Conda: This was the first time for me using conda and I realized how powerful conda environments could be.

and the list goes on.

Indeed, I think this project has made me a better programmer, problem solver, analyzer and communicator.

I am thankful to Ondrej Sir and team for accepting me in this project. Thank you so much for this wonderful journey and amazing experience throughout.
